RSP1 is replaced by RSP2 inside the Vasyljev


This heart transplantation was inevitable.

The images tell the story by itself!

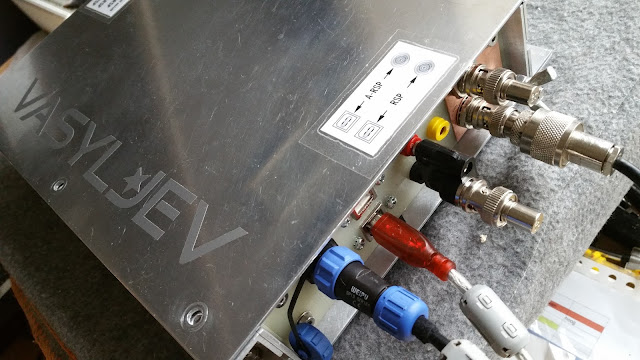

Before the transplantation:

Both the Airspy Mini and the RSP1 on board.

.... and how it changed to Vasyljev 2.0



Removed the back pane




The RSP1 removed and the RSP2 on its position




Preparing the new back pane



Almost ready, thanks to the Dremel




The Hi-Z terminals in place




Back pane

Populating the back pane





New situation

The Hi-Z interconnection is ready




Back pane - once again



With banana to BNC adapter




Earth plate now connected to BNC terminals becaue floating inputs were a bit noisier




Operating the Vasyljev 2.0




CAT control implemented
A wire antenna that can be connected to the Hi-Z input directly
